Fluid Leakage Inspection
Fluid Leakage Inspection

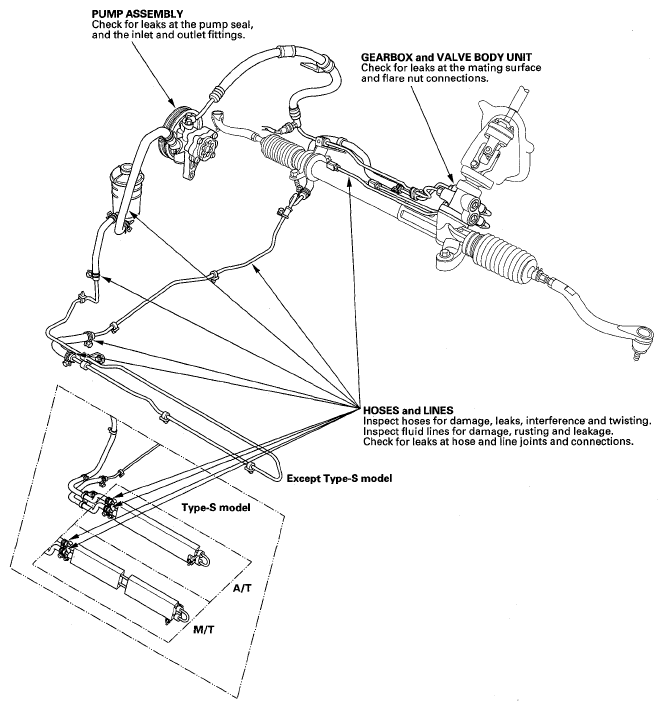

Fig 1: Identifying Fluid Leakage Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
