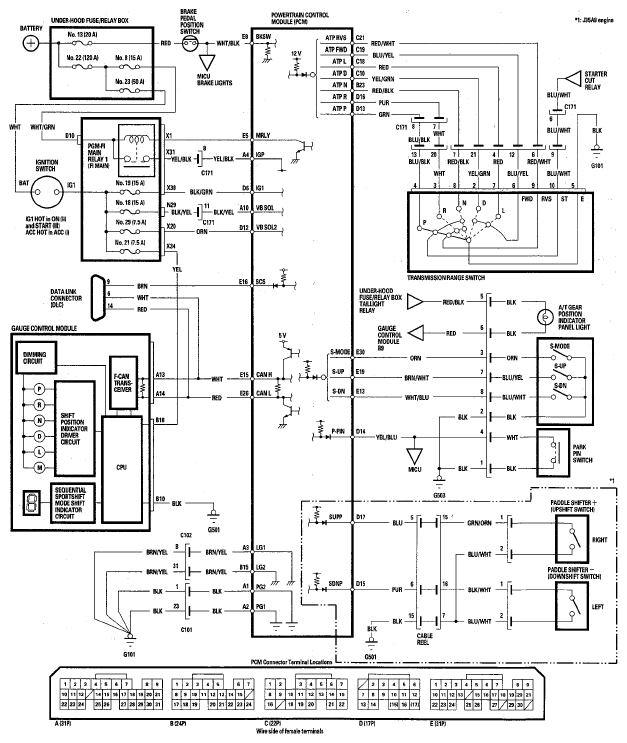

Fig 1: A/T Gear Position Indicator - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

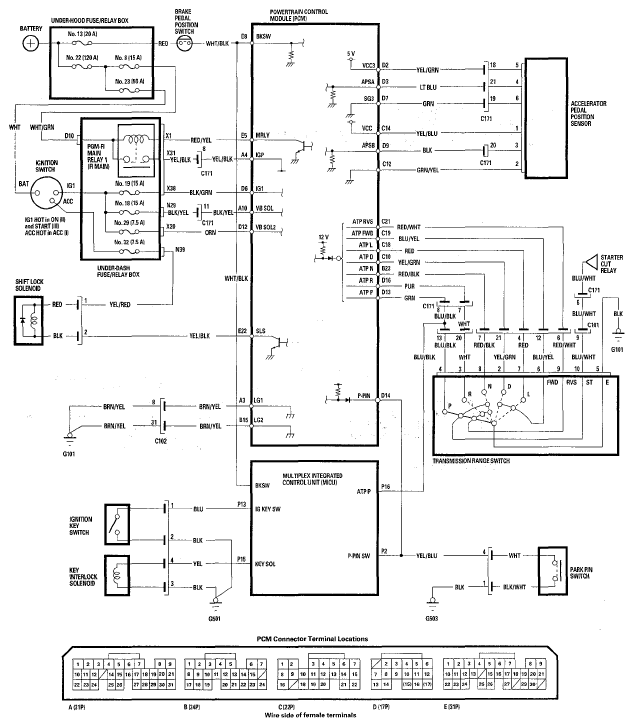

Fig 1: A/T Interlock System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
