Under-Hood Multi-Relay Box Connector End View

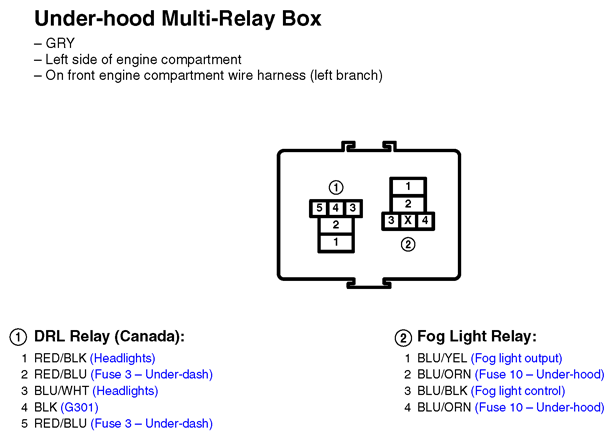

Fig 1: Under-Hood Multi-Relay Box Connector End View
G11249783
