System Description
›
Electronic Control System
›
PCM Electrical Connections '06 Model
PCM Electrical Connections '06 Model

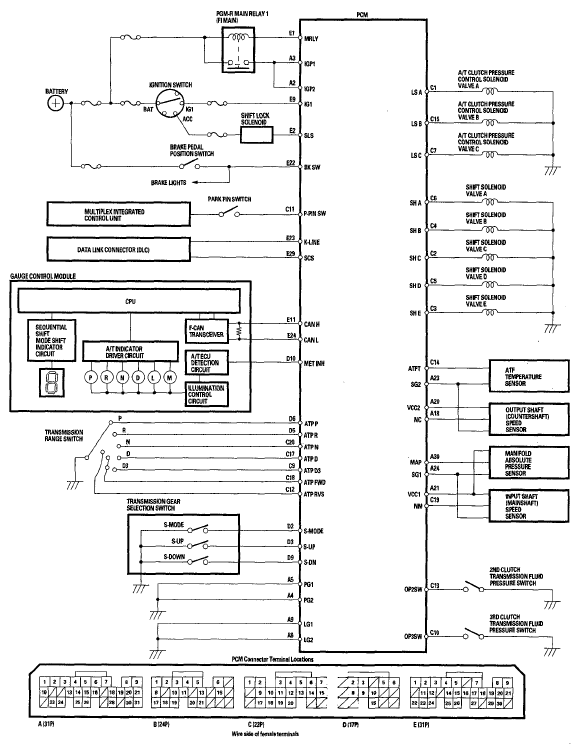

Fig 1: PCM Electrical Connections Circuit Diagram ('06 Model)
