C552 (Navigation) Connector End View
C552 (Navigation) Connector End View

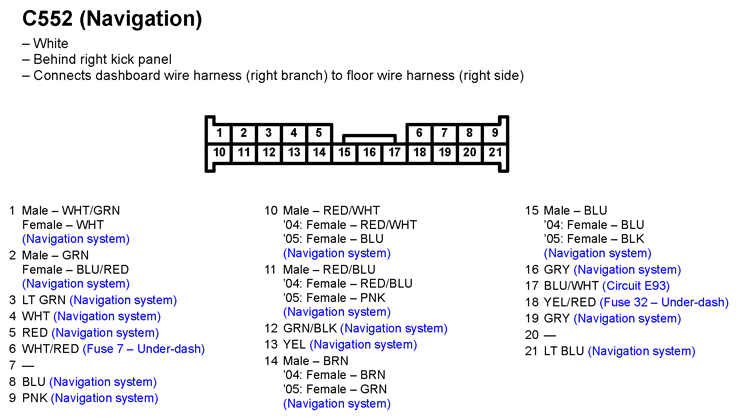

Fig 1: C552 (Navigation) Connector End View
