Power Mirror Switch Connector End View
Power Mirror Switch Connector End View

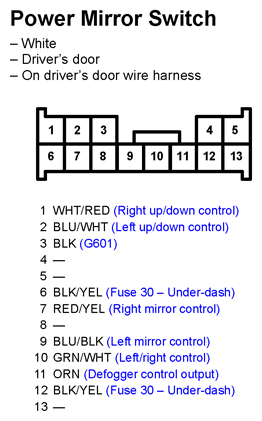

Fig 1: Power Mirror Switch Connector End View
