DTC P0627: Fuel Pump Control Module System Malfunction: Notes

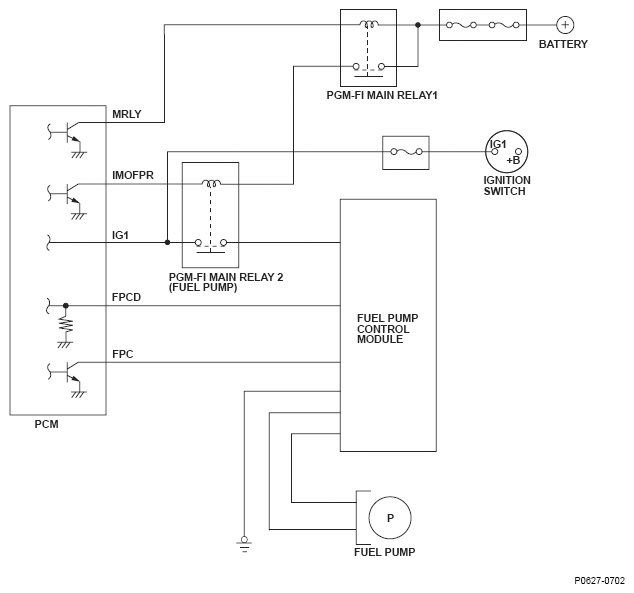

Fig 1: Fuel Pump Control Module System - Circuit Diagram
G04835929
