Relays And Control Unit Locations: Dashboard

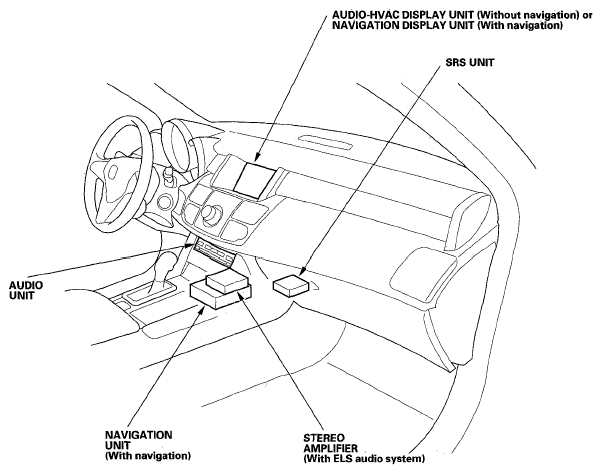

Fig 1: Identifying Gauge Control Module - Dashboard (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

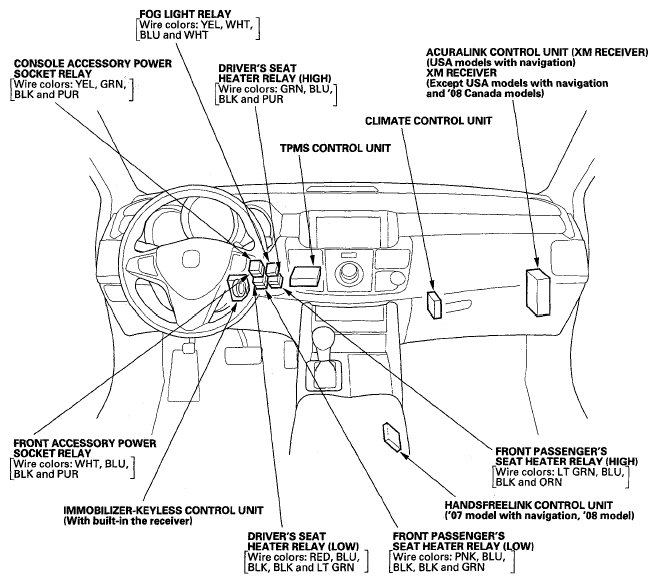

Fig 2: Identifying Gauge Control Module - Dashboard (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Gauge Control Module - Dashboard (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
