Right Power Mirror Connector End View
Right Power Mirror Connector End View

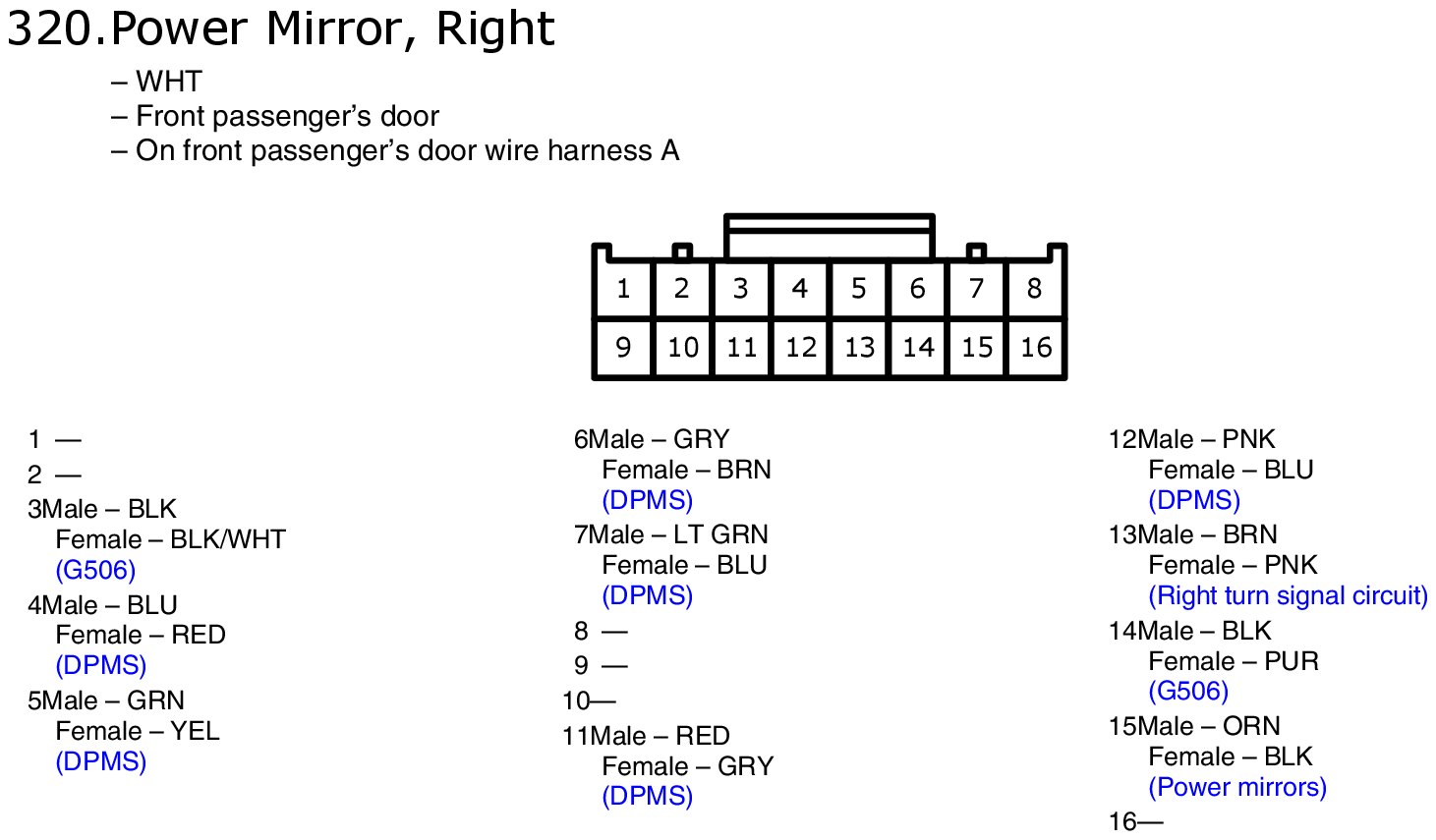

Fig 1: Right Power Mirror Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

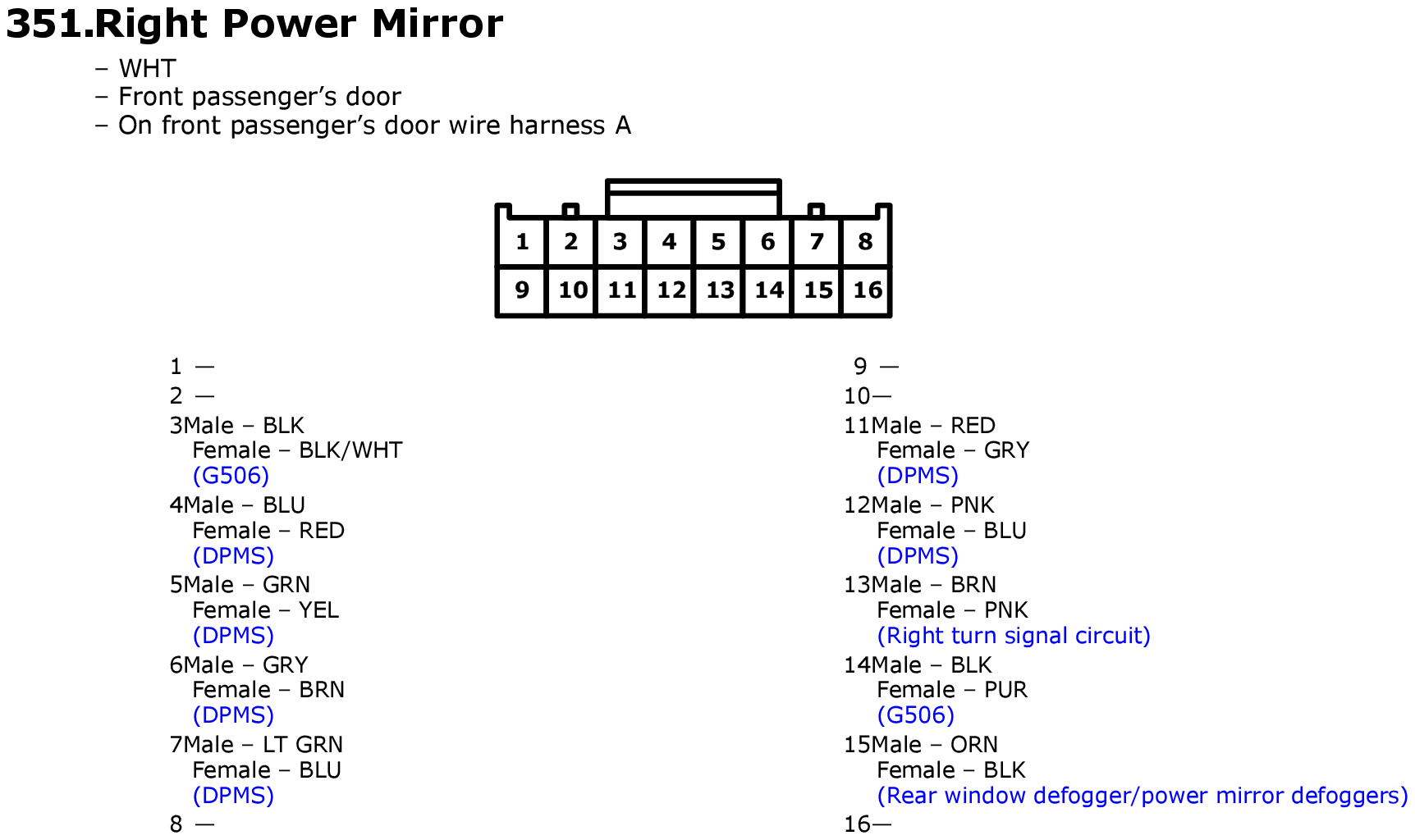

Fig 1: Right Power Mirror Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
