Power Mirror Control Unit Connector End View
Power Mirror Control Unit Connector End View

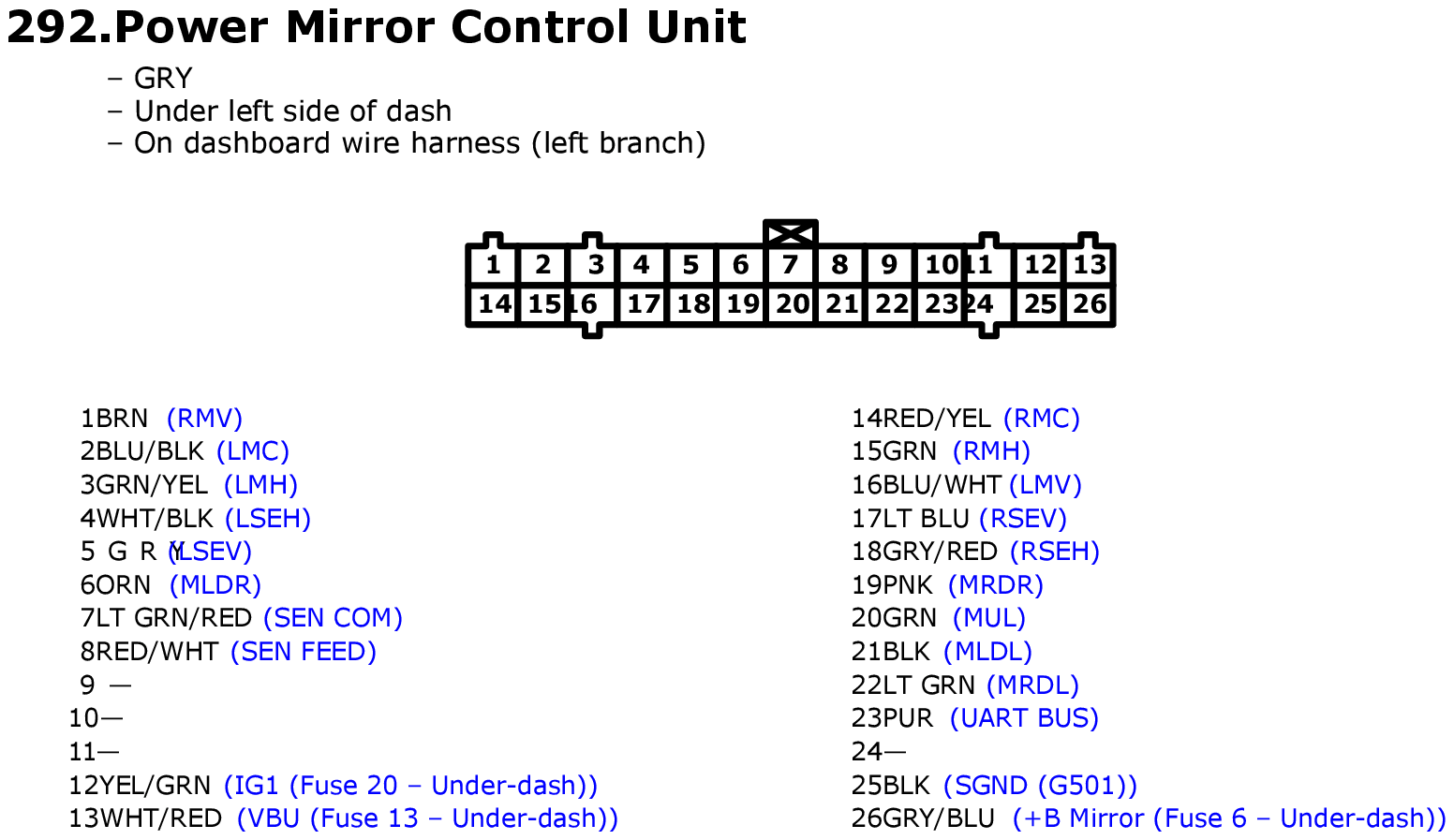

Fig 1: Power Mirror Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
