Accelerator Pedal Replacement

  1. Remove the throttle cable from the accelerator pedal (see step 4 on THROTTLE CABLE REMOVAL/INSTALLATION ).
  2. Remove the accelerator pedal bracket (A).

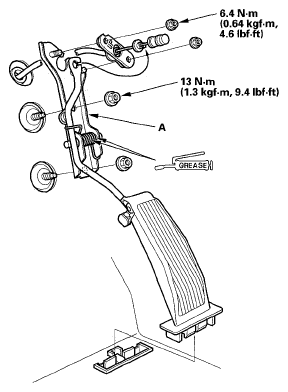

    Fig 1: Accelerator Pedal Bracket With Torque Specifications
    G05458370Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal.
