Multiplex Integrated Control System
›
Circuit Diagram
Circuit Diagram

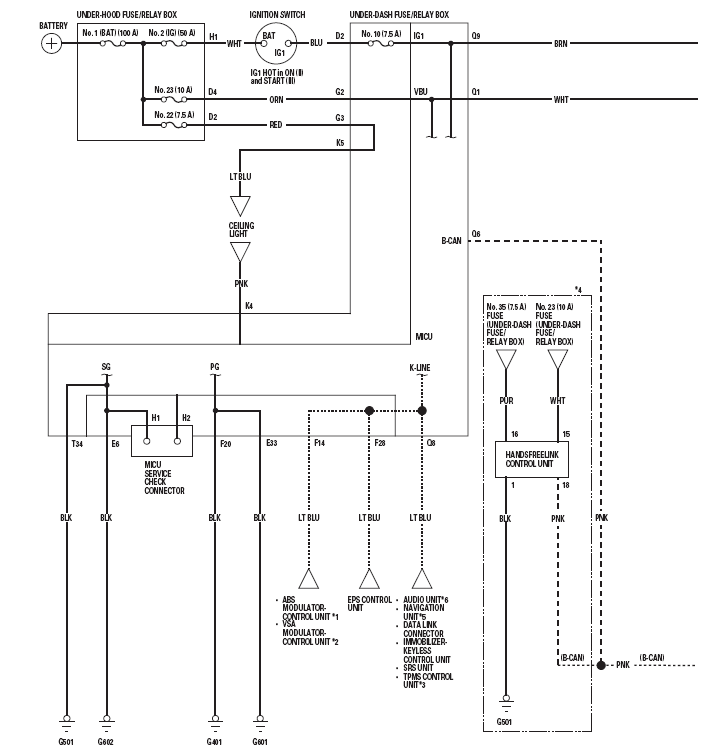

Fig 1: Under-Hood Fuse/Relay Box - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Under-Hood Fuse/Relay Box - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
