XM Receiver Removal/Installation

Open the trunk lid and remove the right trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
Disconnect connectors (A) from the XM receiver (B).

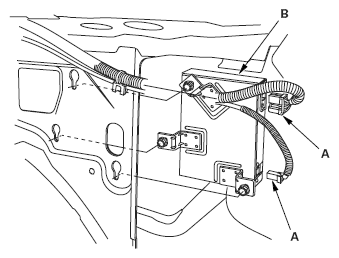

Fig 1: Identifying XM Receiver And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the three bolts, and remove the XM receiver.
Install the XM receiver in the reverse order of removal.
