Immobilizer-keyless Control Unit Replacement
- Remove the driver's dashboard lower cover (see
DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION
).
- Remove the steering column covers (see
COLUMN COVER REMOVAL AND INSTALLATION
).

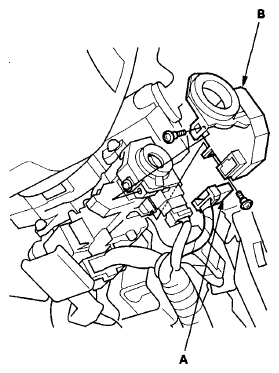

- Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the two screws and the immobilizer-keyless control unit.
- Install the immobilizer-keyless control unit in the reverse order of removal.
- After replacement, register the immobilizer-keyless control unit (see IMMOBILIZER KEY REGISTRATION
), and make sure the immobilizer system works properly.
