Idler Pulley Replacement

  1. Remove the drive belt (see DRIVE BELT INSPECTION ).
  2. Remove the idler pulley.

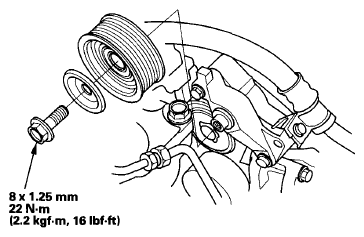

    Fig 1: Idler Pulley And Bolt With Torque Specifications
    G06265448Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the idler pulley in the reverse order of removal.
