Subdisplay Visor Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through Honda Canada Inc. Technical Tools Department; Fax # 1-866-398-8665/e-mail: ch_technicaltools@ch.honda.com

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Tilt the steering column down, and telescope it out.
Remove the screw.

Fig 1: Tilting Steering Column
Courtesy of AMERICAN HONDA MOTOR CO., INC.

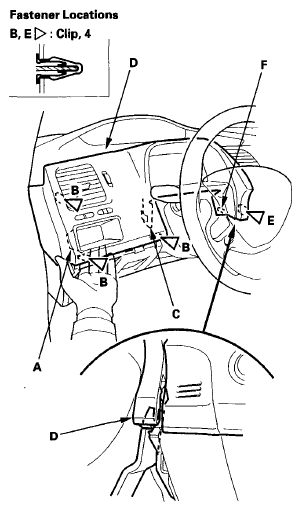

Pull the back of the driver's pocket (A) by hand from the driver's lower cover opening to release the clips (B) and hook (C) on the outside.

Fig 2: Pulling Driver's Pocket From Driver's Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pry up on the inside edge of the subdisplay visor (D) with a trim tool to detach the clip (E), and release the pin (F).

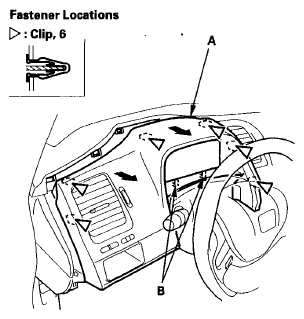

Detach the clips along the upper edge of the subdisplay visor (A). Gently pull out the visor to release the hooks (B).

Fig 3: Detaching Subdisplay Visor And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the illumination control switch connector (A).

Fig 4: Identifying Illumination Control Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, remove the screws, then remove the illumination control switch (A), and driver's pocket (B) from the subdisplay visor (C).

Fig 5: Identifying Illumination Control Switch, Driver's Pocket Subdisplay Visor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the subdisplay visor in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
