Exploded View-K20Z2

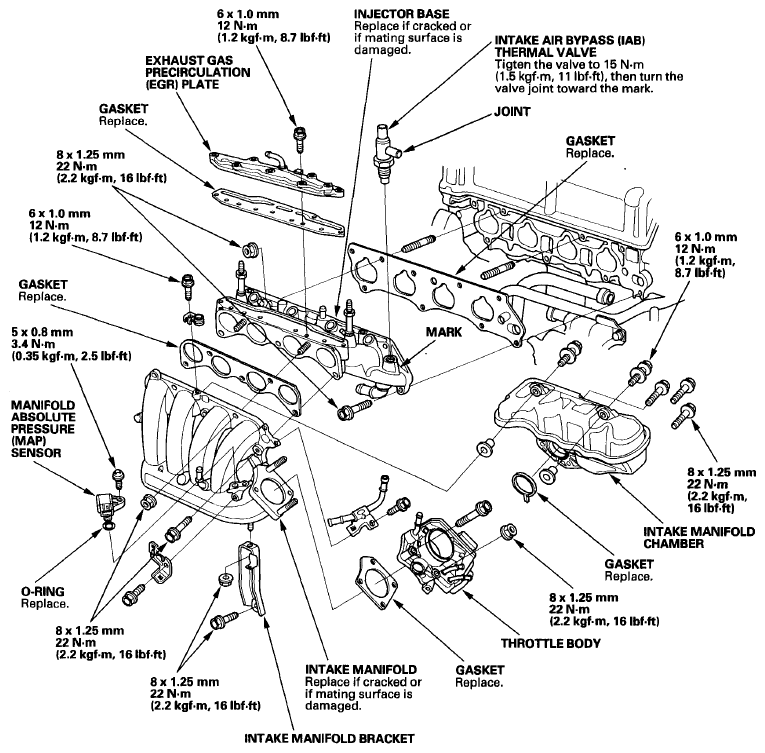

Fig 1: Exploded View Of Intake Manifold (K20Z2) With Torque Specifications
G06265693Courtesy of AMERICAN HONDA MOTOR CO., INC.
