Positive Crankcase Ventilation (PCV) System

The PCV valve prevents blow-by gasses from escaping into the atmosphere by venting them into the intake manifold.

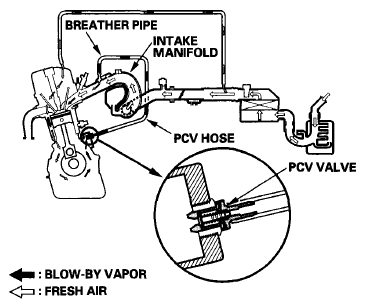

Fig 1: Identifying Positive Crankcase Ventilation (PCV) System

* : This illustration shows K20Z2 engine
