Component Location Index

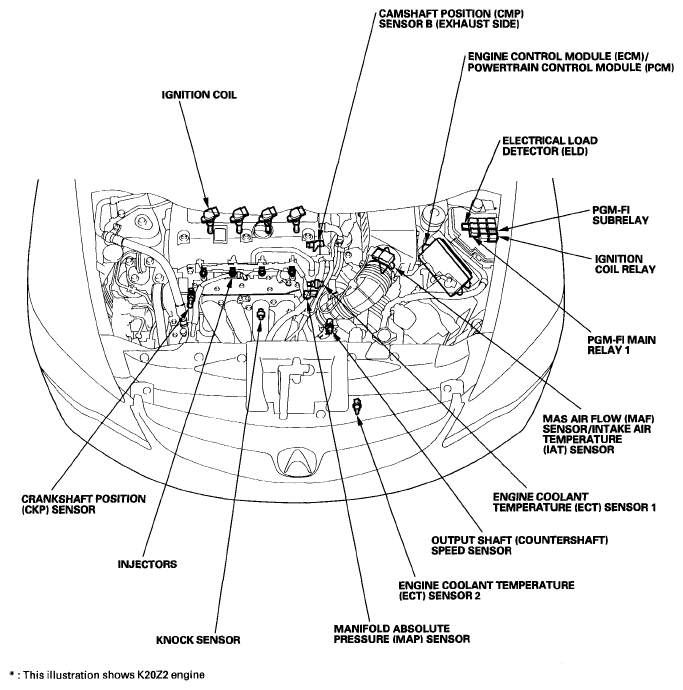

Fig 1: Identifying PGM-FI System Components (1 Of 2)
G06264459Courtesy of AMERICAN HONDA MOTOR CO., INC.

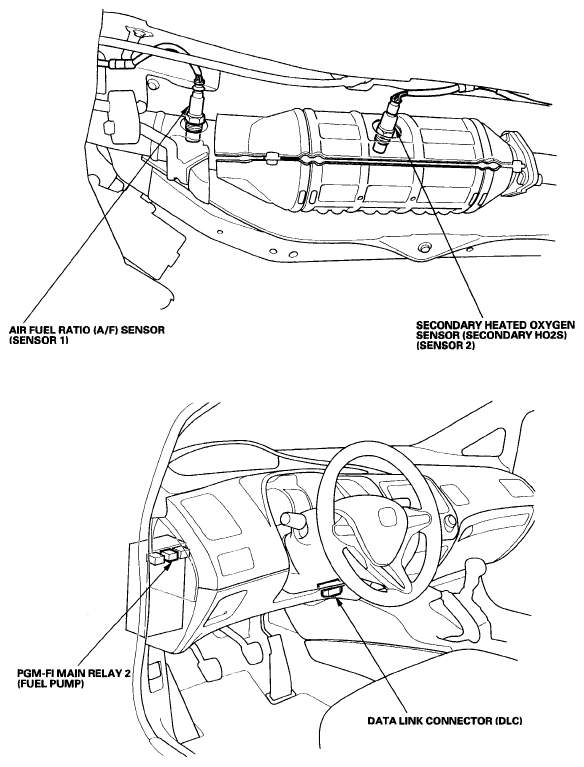

Fig 2: Identifying PGM-FI System Components (2 Of 2)
G06264460Courtesy of AMERICAN HONDA MOTOR CO., INC.
