Motor Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner (see HEADLINER REMOVAL/INSTALLATION )
Put on gloves to protect your hands Disconnect the connector (A), and remove the screws, then remove the motor (B)

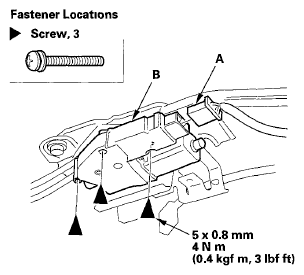

Fig 1: Motor Connector And Screws With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal, and note these items
- Make sure the connector is plugged in properly
- Reset the moonroof control unit (see RESETTING THE MOONROOF CONTROL UNIT )
- Check the motor operation
