Roof Console Input Test/Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the map light switch OFF
  2. Open the sung lass holder, then remove the two screws (A)

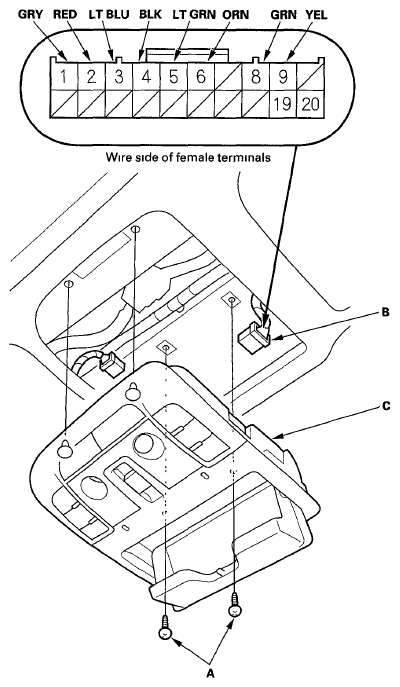

    Fig 1: Identifying Roof Console 20P Connector Terminals And Screws
    G05988970Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 20P connector (B) from the roof console (C)
  4. Inspect the connector and socket terminals to be sure they are all making good contact
    • If the terminals are bent, loose or corroded, repair them as necessary and recheck the system
    • If the terminals look OK, go to step 5
  5. With the connector still disconnected, do these input tests at the following connector
    • If any test indicates a problem, find and correct the cause, then recheck the system
    • If all the input tests prove OK, go to step 6
    TEST CONDITION INPUT CHART

    Cavity Wire Test condition Test Desired result Possible cause if desired result is not obtained
    5 LT GRN Disconnect driver's under-dash fuse/relay box connector P (20P) Check for continuity between terminal No 5 and driver's under-dash fuse/relay box connector P (20P) terminal No 4 There should be continuity An open or high resistance in the wire
    6 ORN Disconnect driver's under-dash fuse/relay box connector Q (20P) Check for continuity between terminal No 6 and driver's under-dash fuse/relay box connector Q (20P) terminal No 4 There should be continuity An open or high resistance iin the wire
    8 GRN Disconnect the rear individual map lights 10P connector Check for continuity between terminal No 8 and the rear individual map lights 10P connector terminal No 8 There should be continuity An open in the wire
    9 YEL Disconnect the rear individual map lights 10P connector Check for continuity between terminal No 9 and the rear individual map lights 10P connector terminal No 9 There should be continuity An open in the wire
    2 RED Disconnect the gauge control module 32P connector Check for continuity between terminal No 2 and the gauge control module 32P connector terminal No 8 There should be continuity An open or high resistance iin the wire
  6. Reconnect the connector to the roof console, and do these input tests at the following connector
    • If any test indicates a problem, find and correct the cause, then recheck the system
    • If all the input tests prove OK, the roof console must be faulty, replace it
    TEST CONDITION INPUT CHART

    Cavity Wire Test condition Test Desired result Possible cause if desired result is not obtained
    4 BLK In all ignition switch positions or all power modes Measure the voltage to ground There should be less than 0 2V
    • Poor ground(G401) or open in ground wire
    • An open or high resistance in the wire
    3 LT BLU Under all conditions Measure the voltage to ground There should be battery voltage
    • Blown No 16(7 5 A) fuse in the under-hood fuse/relay box
    • An open or high resistance in the wire
    1 GRY Combination light switch (SMALL position) ON Measure the voltage to ground There should be battery voltage
    • Blown No 6 (7 5 A) fuse in the passenger's under-dash fuse/relay box
    • An open or high resistance in the wire
