System Description
›
Navigation System Connector Location
Navigation System Connector Location

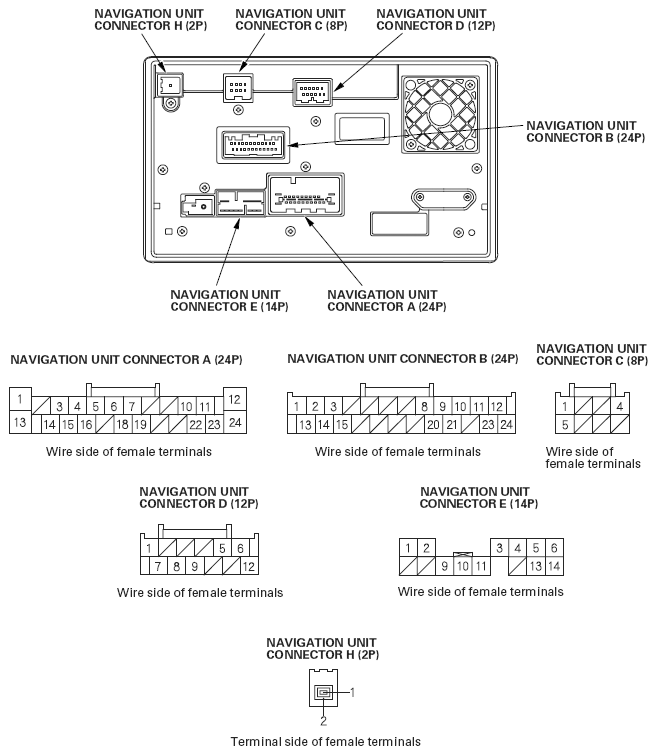

Fig 1: Identifying Navigation Unit Connectors Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
