Front Door Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through Honda Canada Inc. Technical Tools Department; Fax # 1-866-398-8665/e-mail: ch_technicaltools@ch.honda.com

1. Raise the glass fully.
2. Using the appropriate trim tool, pry out on the rear portion of the inner handle cap (A) to release the hooks (B, C).
   Fig 1: Identifying Inner Handle Cap And Hooks

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the screw (A) and clip (B) securing the inner handle (C).
   Fig 2: Identifying Screw, Clip And Inner Handle

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the power window switch panel (A).
   1. Using the appropriate trim tool, pry up on the rear edge of the switch panel to release the rear clip.
   2. Pull out along the edge of the panel to release all of the hooks (B).
   3. Pull the switch panel rearward to release the front hook (C).
   4. Disconnect the power mirror switch connector (D) (driver's) and the power window switch connector (E).
      Fig 3: Identifying Power Window Switch Panel, Power Mirror Switch Connector And Power Window Switch Connector

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the screw.
   Fig 4: Identifying Screw

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

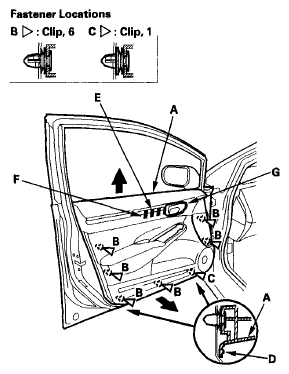

6. Remove the door panel (A) with as little bending as possible to avoid creasing or breaking it.
   1. Start at the bottom edge of the door panel, release the clips (B, C) that are just above the marks (D) on the edge of the panel with a commercially available trim pad remover.
   2. Detach the upper clips.
   3. Starting at the rear, pull the door panel upward.
      NOTE: The inner handle cable (E) and latch cable (F) are connected to the inner handle (G). Do not pull the door panel up too far, or these cables will be damaged.
      Fig 5: Identifying Door Panel, Inner Handle Cable, Clips And Marks

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. While holding the door panel (A) away from the door remove the inner handle (B) from the door panel by releasing the hooks (C).
   Fig 6: Identifying Door Panel, Inner Handle And Hooks

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the door panel (A) while pulling the inner handle (B) out through the hole in the door panel, and disconnect the courtesy light subharness connector (C).
   Fig 7: Identifying Door Panel, Inner Handle And Courtesy Light Subharness Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

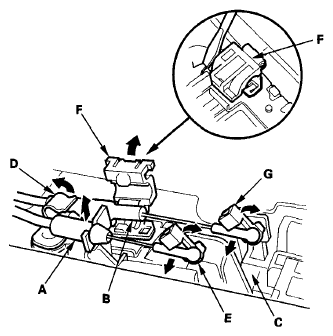

9. If necessary, disconnect the inner handle cable (A) and the latch cable (B) from the inner handle (C), then remove the handle.
   1. Detach the inner handle cable fastener (D), then disconnect the inner handle cable from the cable fastener (E).
   2. Detach the latch cable fastener (F) with a flat- tip screwdriver, then disconnect the latch cable from the cable fastener (G).
      NOTE: Check for damaged or stress-whitened cable fasteners.
      Fig 8: Identifying Inner Handle Cable, Latch Cable, Inner Handle And Cable Fastener

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Install the door panel in the reverse order of removal, and note these items:
    • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
    • Replace any damaged cable fasteners with new ones.
    • The latch cable (A) should be fixed to the cable fastener (B) with the latch in lock position.
    • Make sure the connectors are plugged in properly, and the cables are connected securely.
    • Make sure the window and power door lock operate properly.
      Fig 9: Identifying Latch Cable And Cable Fastener

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
