Relay And Control Unit Locations
›
Roof and Floor
Roof and Floor

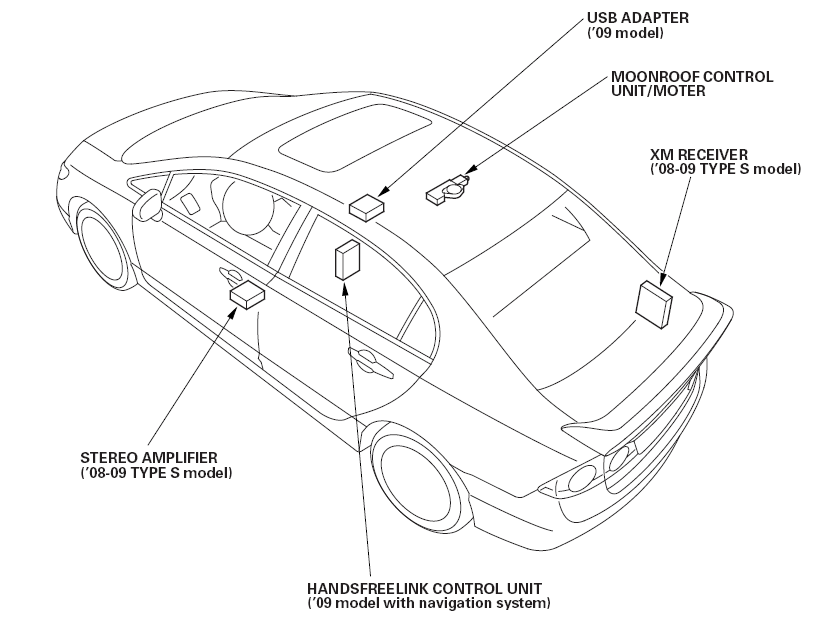

Fig 1: Identifying Stereo Amplifier And Moonroof Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
