Installation (K20Z3 engine)

Install the accelerator pedal module.
NOTE: Make sure the tab (A) is secure.

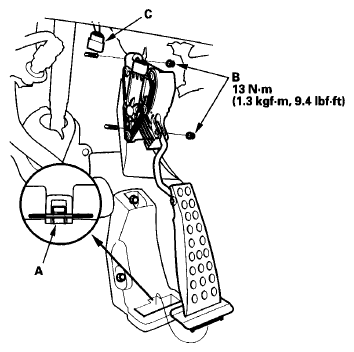

Fig 1: Accelerator Pedal Module Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the nuts (B), then connect the accelerator pedal module connector (C).
NOTE: Make sure that the accelerator pedal module is secure.
