Component Location Index

K20Z2 engine:

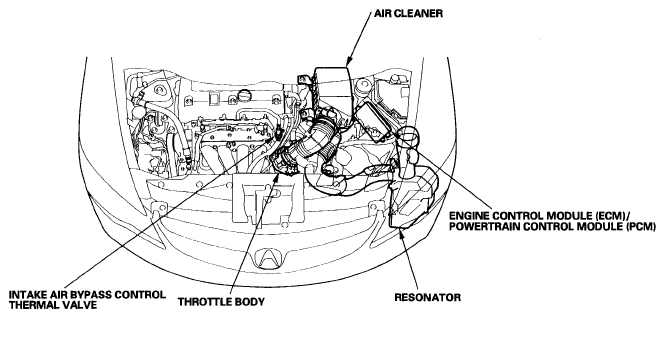

Fig 1: Identifying Intake Air System Component Location (K20Z2 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

K20Z3 engine:

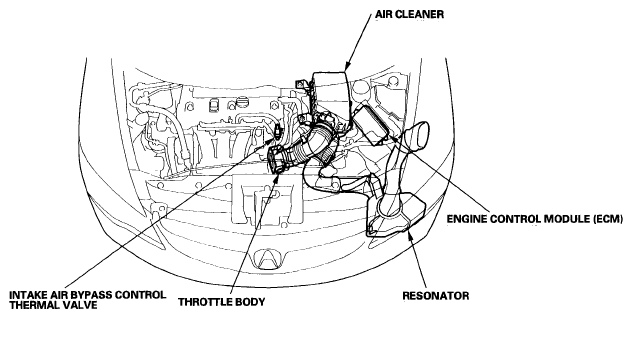

Fig 2: Identifying Intake Air System Component Location (K20Z3 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
