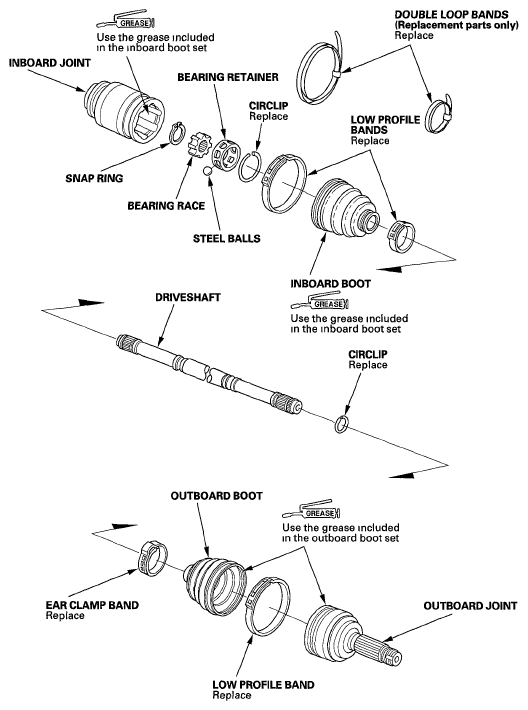

Exploded View
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
- Boot band tool, KD-3191 or equivalent, commercially available
- Seal clamp tool, Kent-Moore J-35910 or equivalent, commercially available
- Boot band pliers, commercially available
NOTE:
Refer to the EXPLODED VIEW , as needed, during this procedure
