Maintenance Display

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

The maintenance minder is an important feature of the multi-information display Based on engine and transmission operating conditions, operating conditions and accumulated engine revolutions, the TL's onboard computer (PCM) calculates the remaining engine oil and the transmission fluid life The system also displays the remaining engine oil life along with the code(s) for other scheduled maintenance items needing service

Meter

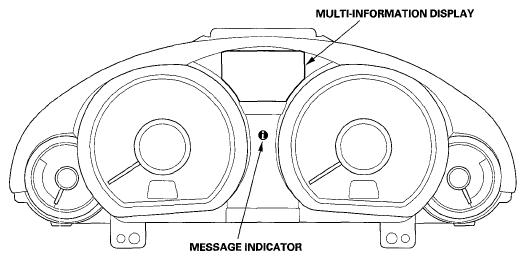

Fig 1: Identifying Multi-Information Display And Message Indicator

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Steering Wheel

Fig 2: Identifying Steering Wheel Information Button And Reset Button

Courtesy of AMERICAN HONDA MOTOR CO., INC.
