Exploded View

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

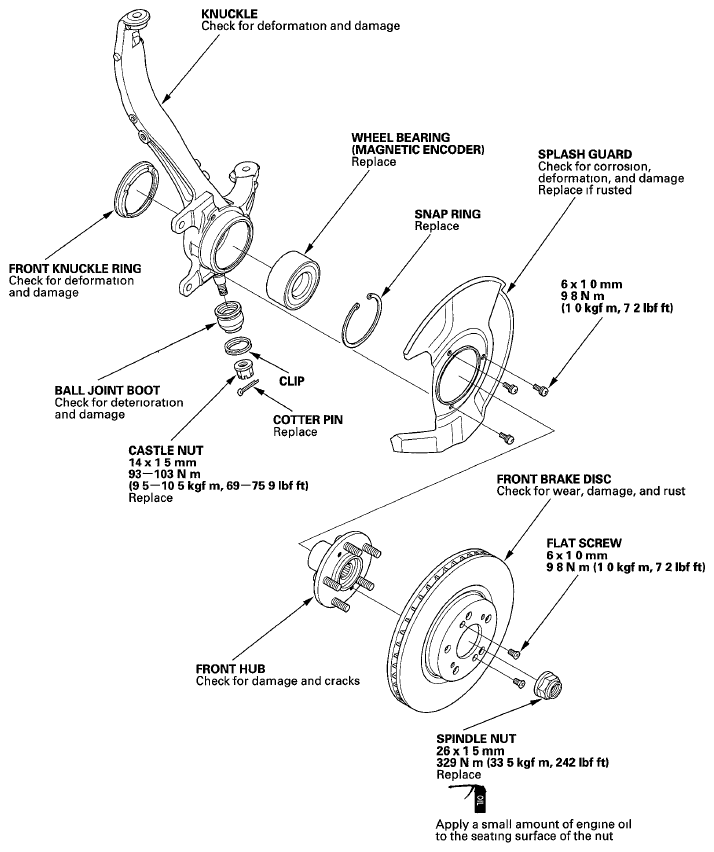

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball joint thread protector, 14 mm 07AAE-SJAA100
Ball joint thread protector, 12 mm 07AAF-SDAA100
Ball joint thread protector, 10 mm 07AAF-SECA120
Ball joint remover, 28 mm 07MAC-SL0A202
Hub dis/assembly tool 07GAF-SD40100
Attachment, 72 x75 mm 07746-0010600
Driver handle 07749-0010000
Attachment, 80 x96 mm 07ZAD-PNA0100
Support base 07965-SD90100
