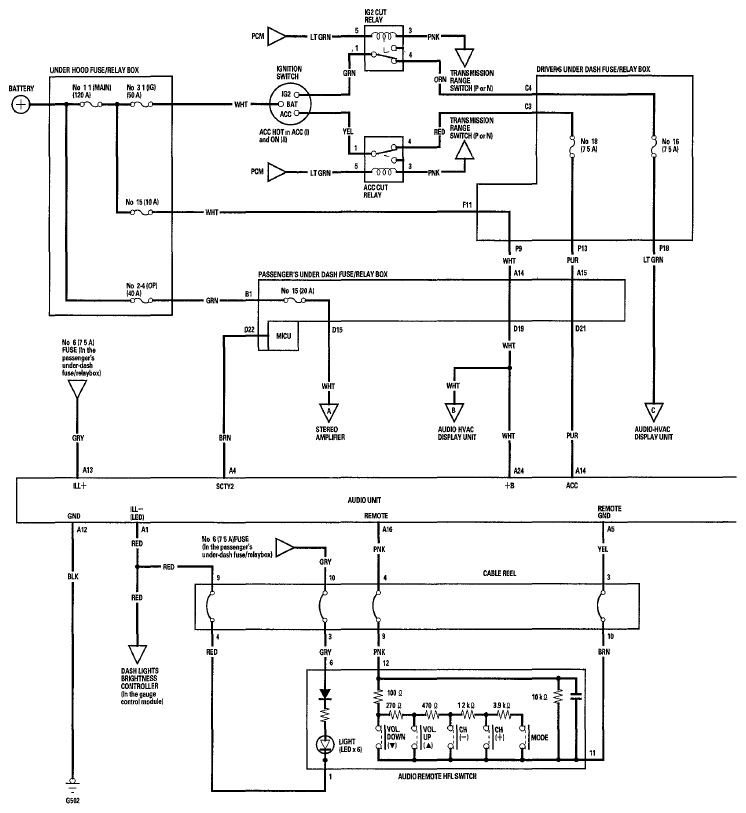

Fig 1: Audio System Circuit Diagram - Without Navigation (1 Of 5)

G05989495

Courtesy of AMERICAN HONDA MOTOR CO., INC.

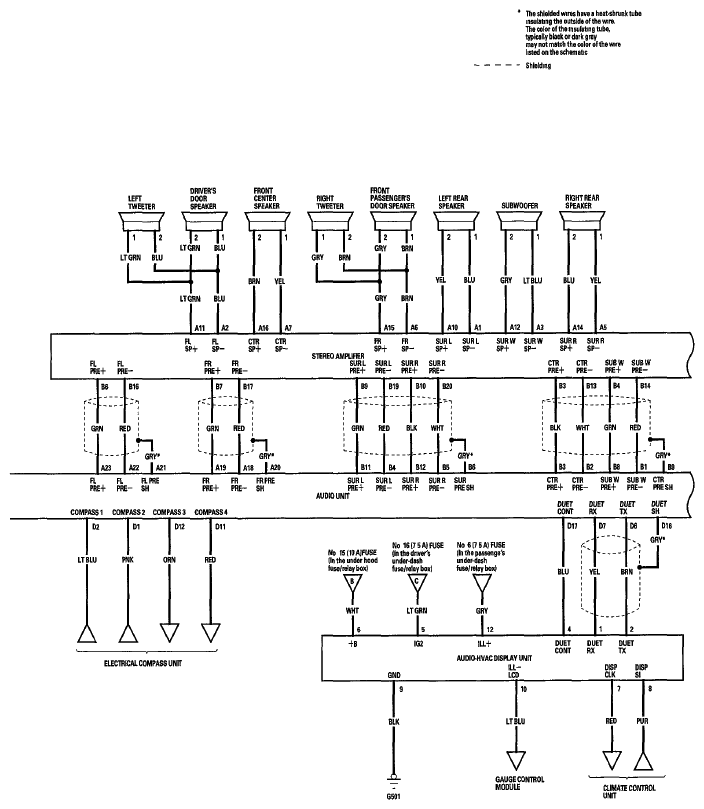

Fig 2: Audio System Circuit Diagram - Without Navigation (2 Of 5)

G05989496

Courtesy of AMERICAN HONDA MOTOR CO., INC.

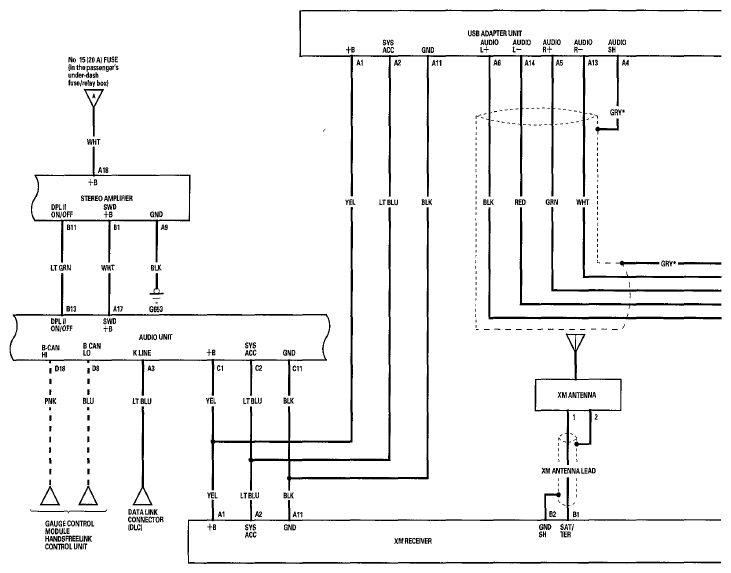

Fig 3: Audio System Circuit Diagram - Without Navigation (3 Of 5)

G05989497

Courtesy of AMERICAN HONDA MOTOR CO., INC.

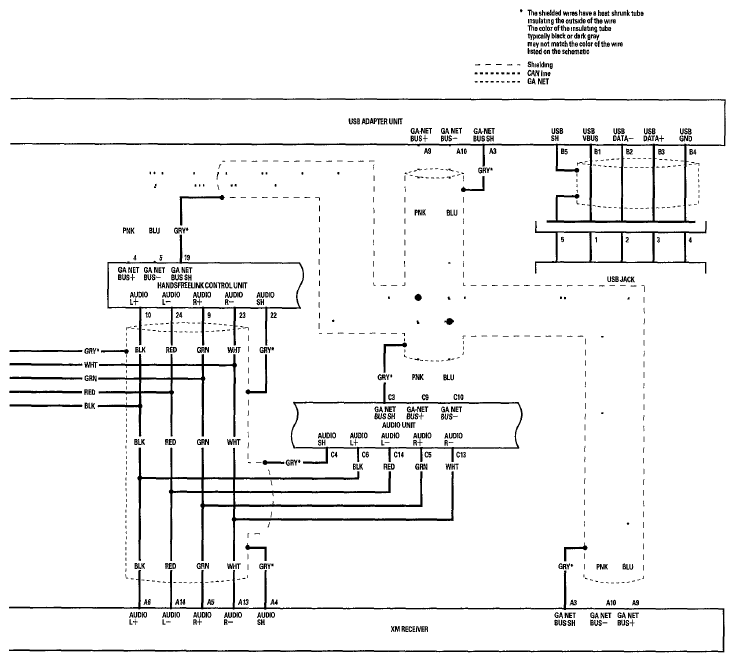

Fig 4: Audio System Circuit Diagram - Without Navigation (4 Of 5)

G05989498

Courtesy of AMERICAN HONDA MOTOR CO., INC.

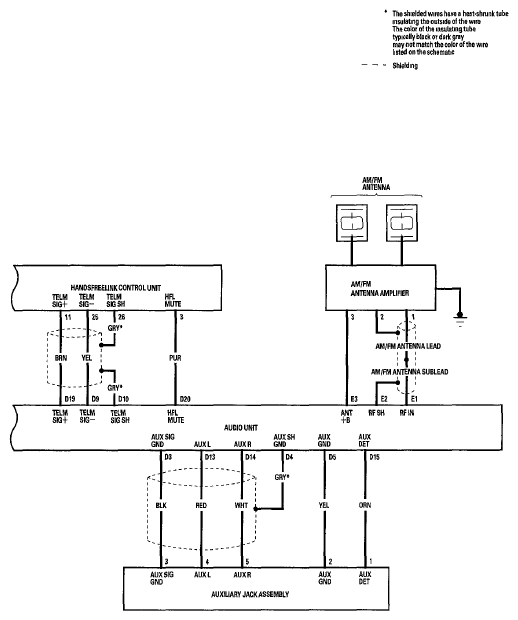

Fig 5: Audio System Circuit Diagram - Without Navigation (5 Of 5)

G05989499

Courtesy of AMERICAN HONDA MOTOR CO., INC.
