Stereo Amplifier Removal/Installation
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the right trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA )

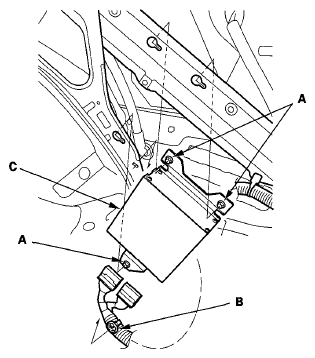

- Loosen the mounting bolts (A), then detach the clip (B) and pull out the stereo amplifier (C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Bolt Specifications: 6 x 1.0 mm, 9.4 N.m (0.95 kgf m, 6.9 lbf ft
- Disconnect the connectors from the stereo amplifier, and remove it
- Install the stereo amplifier in the reverse order of removal
