Power Mirror Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the door.

Remove these items
- Front door sash inner trim (see FRONT DOOR SASH INNER TRIM REPLACEMENT )
Disconnect the connector (A)

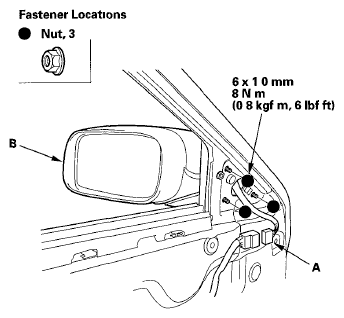

Fig 1: Connector And Mirror With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While holding the mirror (B), remove the nuts securing the mirror
Release the catch (A) from the hole in the door, then remove the mirror (B)

Fig 2: Identifying Mirror And Catch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror in the reverse order of removal, and note these items
- Make sure the connector is plugged in properly.
- If the clips are damaged or stress-whitened, replace them with new ones
- Push the clips on the cover into place securely
