Brake Hose Replacement: Rear

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS )
  2. Remove the rear wheel
  3. Disconnect the brake line (A) from the brake hose (B), then remove the brake hose clip (C)
    Fig 1: Identifying Brake Line, Brake Hose And Brake Hose Clip
    G05987955Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the banjo bolt (A), and disconnect the brake hose from the caliper
    Fig 2: Identifying Banjo Bolt
    G05987956Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the brake hose mounting bolt (B), then remove the brake hose
  6. Install the brake hose (A) with the mounting bolt (B)

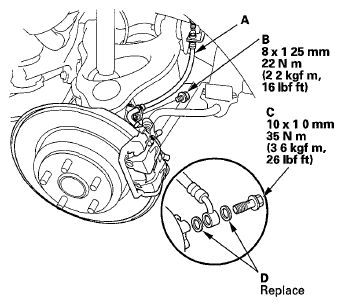

    Fig 3: Brake Hose And Mounting Bolt With Torque Specifications
    G05987957Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Connect the brake hose to the caliper with the banjo bolt (C) and new sealing washers (D)
  8. Install a new brake hose clip (A) to the brake hose (B) on the bracket, then connect the brake line (C) Do not twist the brake hose
    Fig 4: Brake Hose Clip, Brake Hose And Brake Line With Torque Specifications
    G05987958Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. After installing the brake hoses, bleed the brake system (see BRAKE SYSTEM BLEEDING )
  10. Do the following checks
    • Check the brake hose and line joint for leaks, and tighten if necessary
    • Check the brake hose for interference and twisting
  11. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the rear wheel
