Shift Lever Disassembly/Reassembly

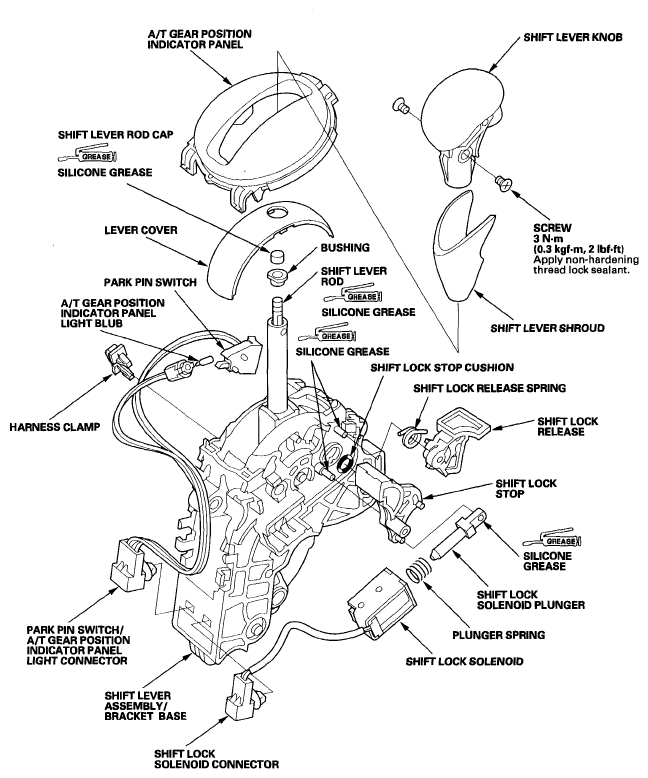

Fig 1: Exploded View Of Shift Lever
G06265131Courtesy of AMERICAN HONDA MOTOR CO., INC.
