Exploded View-Transmission Housing

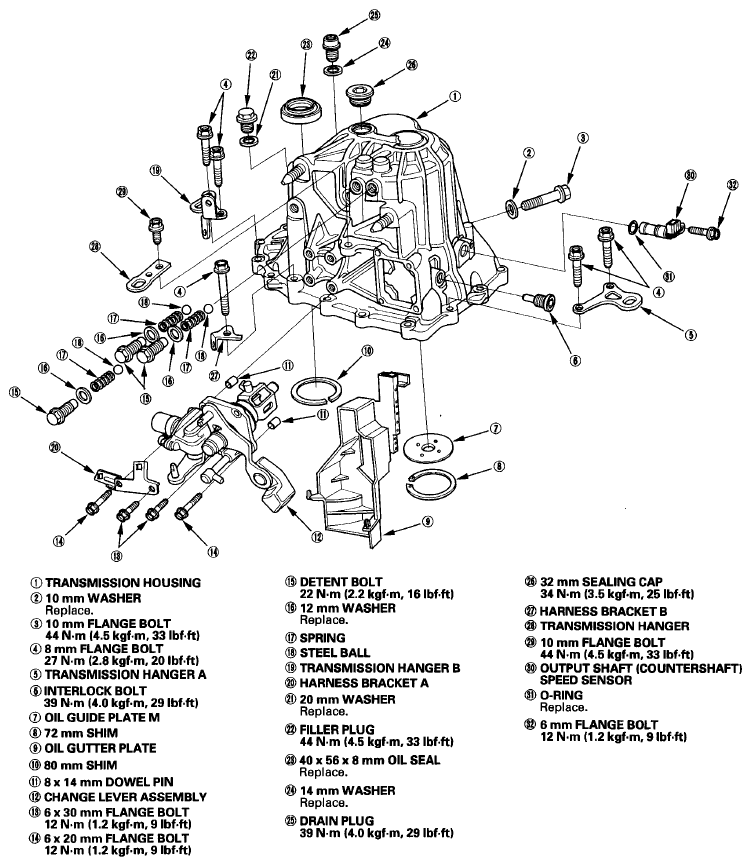

Fig 1: Exploded View Of Transmission Housing With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Place the clutch housing on two pieces of wood thick enough to keep the mainshaft from hitting the workbench.

1. Remove the detent bolts (A), springs, steel balls, and the back-up light switch (B). Then remove the transmission hanger (C).

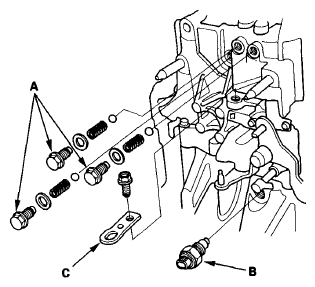

   Fig 2: Identifying Detent Bolts, Back-Up Light Switch And Transmission Hanger

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the 20 mm bolt (A) and the 20 mm washer (B).
   Fig 3: Identifying Bolt And Washer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the interlock bolt (B), change lever assembly (C), 8x14 mm dowel pins (D), and harness bracket A.
   Fig 4: Identifying Interlock Bolt, Change Lever Assembly, Dowel Pins And Harness Bracket

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the drain plug (A), the filler plug (B), the 10 mm flange bolt (C), the output shaft (countershaft) speed sensor (D), and the O-ring (E).
   Fig 5: Identifying Drain Plug, Filler Plug, Flange Bolt, Output Shaft (Countershaft) Speed Sensor And O-Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the 8 mm flange bolts in a crisscross pattern in several steps.
   Fig 6: Identifying Flange Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the transmission hanger A, the transmission hanger B, and the harness bracket (C).
7. Remove the 32 mm sealing cap (A).

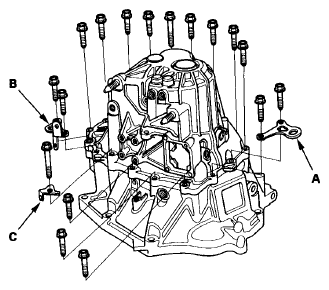

   Fig 7: Identifying Transmission Hanger, Transmission Hanger And Harness Bracket

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Expand the 72 mm snap ring (B) on the countershaft ball bearing, and remove it from the groove using a pair of snap ring pliers.

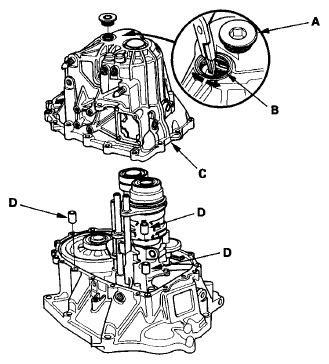

9. Remove the transmission housing (C) and the three 14 x 20 mm dowel pins (D).

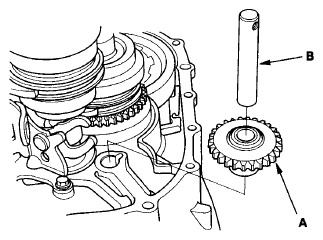

10. Remove the reverse idler gear (A) and the reverse gear shaft (B).
    Fig 8: Identifying Reverse Idler Gear And Reverse Gear Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the reverse shift fork.
    Fig 9: Identifying Reverse Shift Fork

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Apply tape to the mainshaft splines to protect the seal, then remove the mainshaft assembly (A) and countershaft assembly (B) with the shift forks (C) from the clutch housing (D).
    Fig 10: Identifying Mainshaft Assembly, Countershaft Assembly, Shift Forks And Clutch Housing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Remove the 28 mm spring washer (E) and 28 mm washer (F).
    Fig 11: Identifying Spring Washer And Washer

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Remove the differential assembly (A) and the magnet (B).
15. Remove the oil gutter plate (A), the oil guide plate M, and the 72 mm shim (B).

Fig 12: Identifying Oil Gutter Plate And Shim

Courtesy of AMERICAN HONDA MOTOR CO., INC.
