In-car Temperature Sensor Connector End View
In-car Temperature Sensor Connector End View

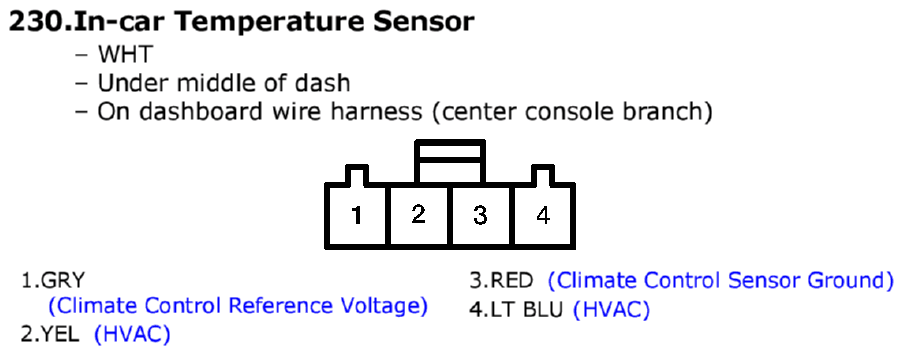

Fig 1: In-car Temperature Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
