Rear Ceiling Light Connector End View
Rear Ceiling Light Connector End View

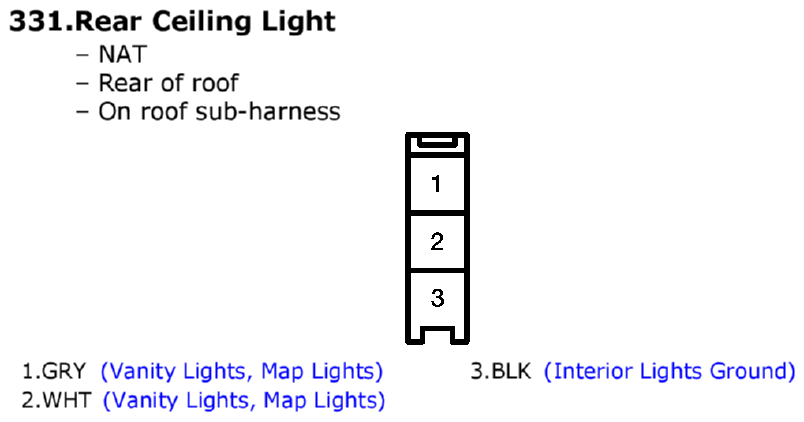

Fig 1: Rear Ceiling Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
