Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch; the steering angle sensor is sensitive to shock and vibration.
  1. Make sure the ignition switch in LOCK (0).
  2. Remove the steering wheel (see STEERING WHEEL REMOVAL ) and steering column cover (see COLUMN COVER REMOVAL/INSTALLATION ).
  3. Remove the combination switch assembly (see step 11 under STEERING COLUMN REMOVAL AND INSTALLATION ).
  4. Remove the cable reel (see CABLE REEL REPLACEMENT ).
  5. Remove the combination light switch (A) and the wiper/washer switch (B).

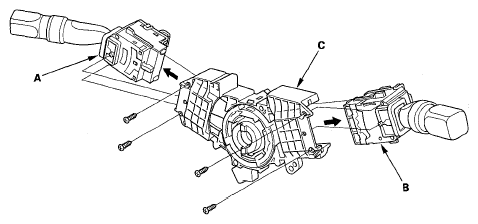

    Fig 1: Identifying Combination Switch Body, Combination Light Switch And Wiper/Washer Switch
    G05447395Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Replace the combination switch body (C).
  7. Install the combination switch in the reverse order of removal.
    NOTE: Do not remove the steering angle sensor from the combination switch body.
  8. After installation, do the STEERING ANGLE SENSOR CENTER POINT WRITING  .
