Home › Acura › 2009 › RDX › Repair and Diagnosis › Engine Mechanical › Cooling Fan Controls › Component Location Index

Component Location Index

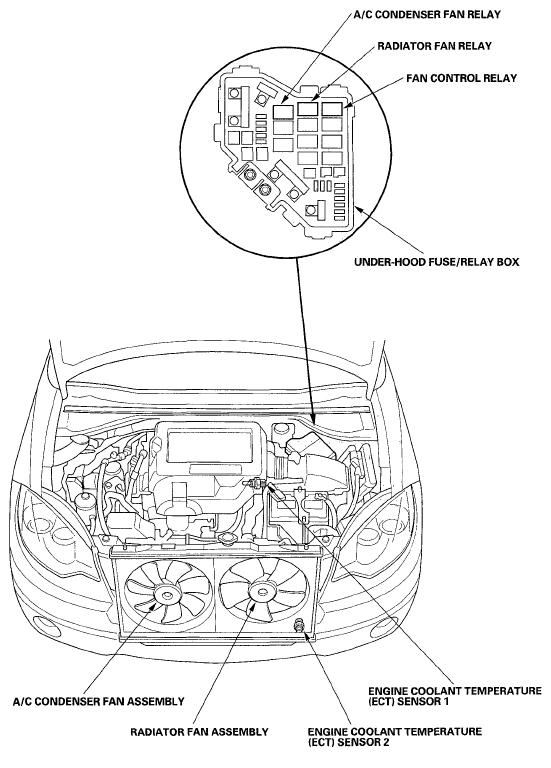

Fig 1: Identifying Fan Controls Component Location
G05444463Courtesy of AMERICAN HONDA MOTOR CO., INC.
