Circuit Diagram
Circuit Diagram

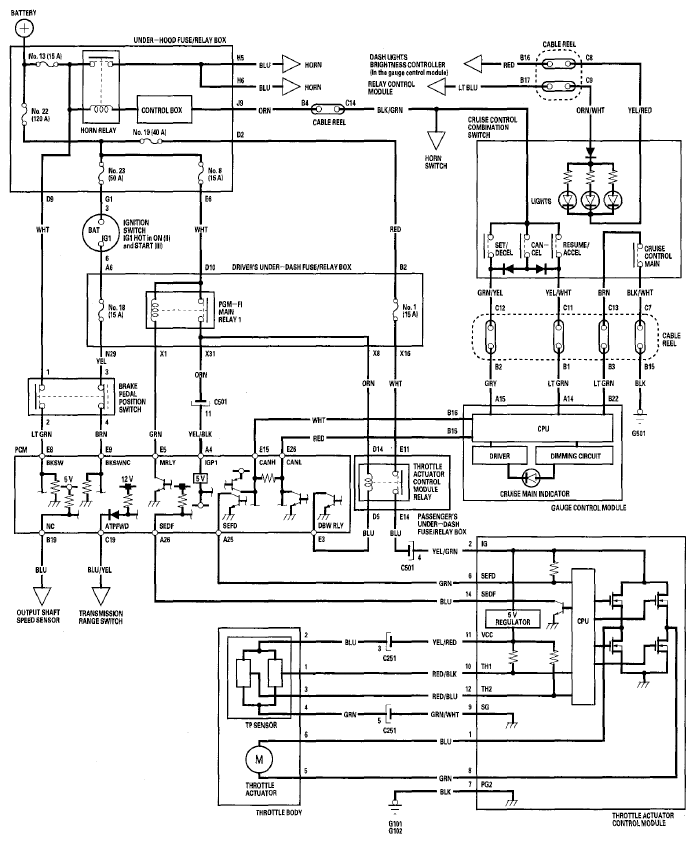

Fig 1: Identifying Cruise Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
