HandsFreeLink Control Unit Removal/Installation
- Remove the glove box (see
GLOVE BOX REMOVAL/INSTALLATION
).
- Remove the passenger's under-dash fuse/relay box (see
PASSENGER'S UNDER-DASH FUSE/RELAY BOX REMOVAL/INSTALLATION
).

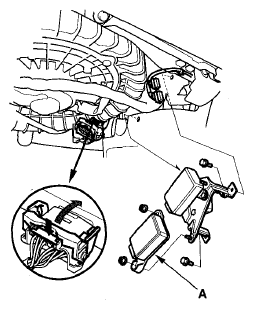

- Remove the bolts from the bracket that holds the HandsFreeLink control unit (A), the throttle actuator control module, and the ACC unit.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the connectors from the HandsFreeLink control unit.
- Remove the HandsFreeLink control unit from the bracket.
- Install the HandsFreeLink control unit in the reverse order of removal.
