System Indicator

This system has four indicators: the ABS indicator (A), the VSA indicator (B), the VSA activation indicator (C) and the brake system indicator (D). When the system detects a problem, it illuminates the appropriate indicators. Depending on the failure, the control unit determines which indicators are turned on.

• When ABS function is lost:

  ABS indicator, VSA indicator, and VSA activation indicators turn on.

• When VSA function is lost:

  VSA indicator and VSA activation indicators turn on.

• When all functions are lost: All four indicators turn on.
• When the gauge control module detects F-CAN circuit problem:

  VSA indicator and brake system indicators turn on.

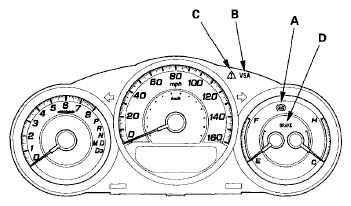

  Fig 1: Identifying ABS , VSA Indicator, And VSA Activation Indicators

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
