Pressure reducing mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve open.

The caliper fluid flows through the outlet valve to the reservoir.

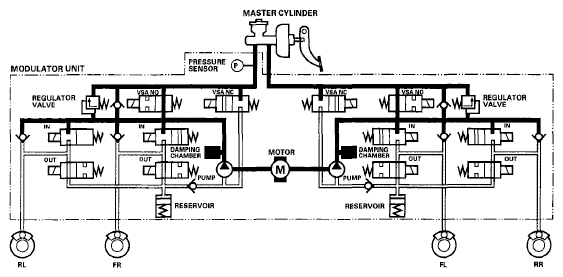

Fig 1: VSA System Circuit Diagram (Pressure Reducing Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
