Pressure reducing mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve open, pump motor ON.

The caliper fluid flows through the outlet valve to the reservoir.

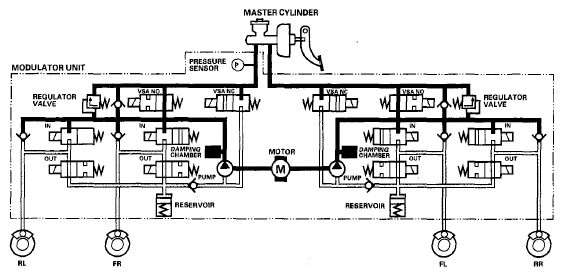

Fig 1: VSA System Circuit Diagram (Pressure Reducing Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
