Alternator Connector End View
Alternator Connector End View

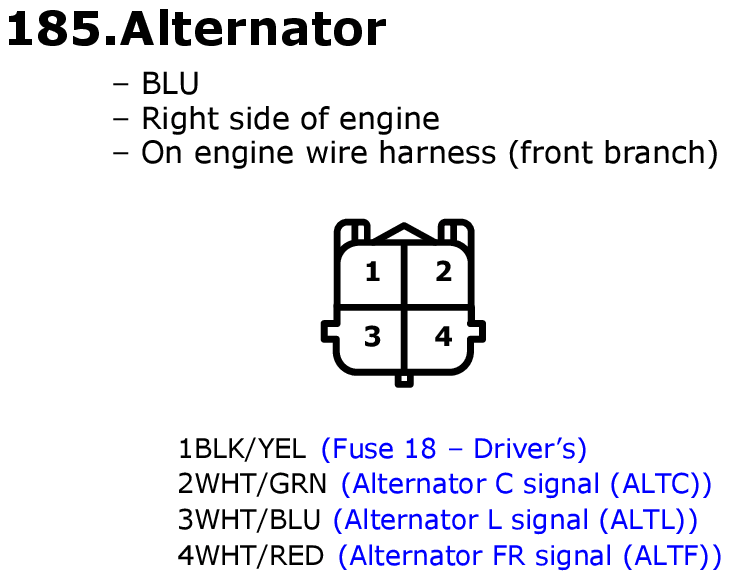

Fig 1: Alternator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
