Audio-HVAC Subdisplay Unit-Clock Connector End View
Audio-HVAC Subdisplay Unit-Clock Connector End View

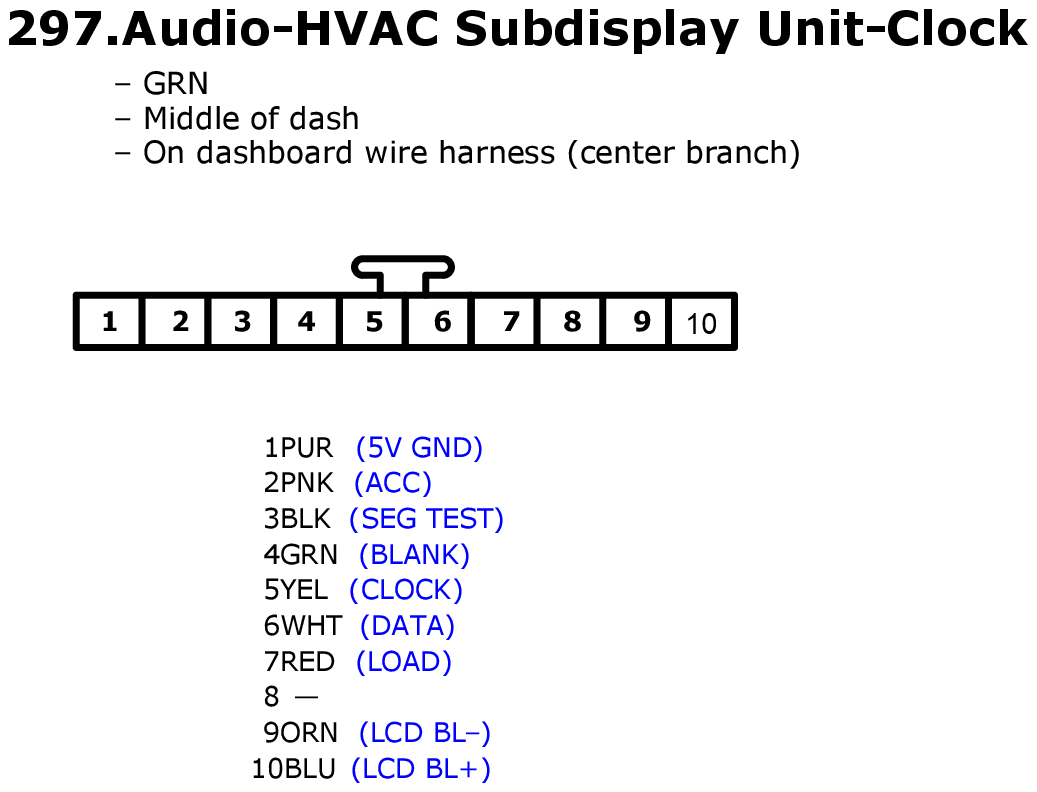

Fig 1: Audio-HVAC Subdisplay Unit-Clock Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
