Fuel Tank Unit Connector End View
Fuel Tank Unit Connector End View

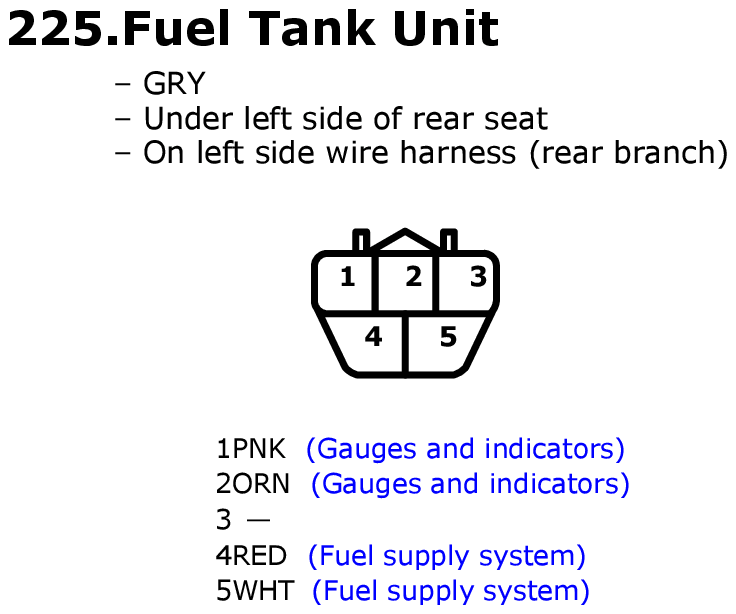

Fig 1: Fuel Tank Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
