Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
HVAC Control Motor Relay Connector End View
HVAC Control Motor Relay Connector End View

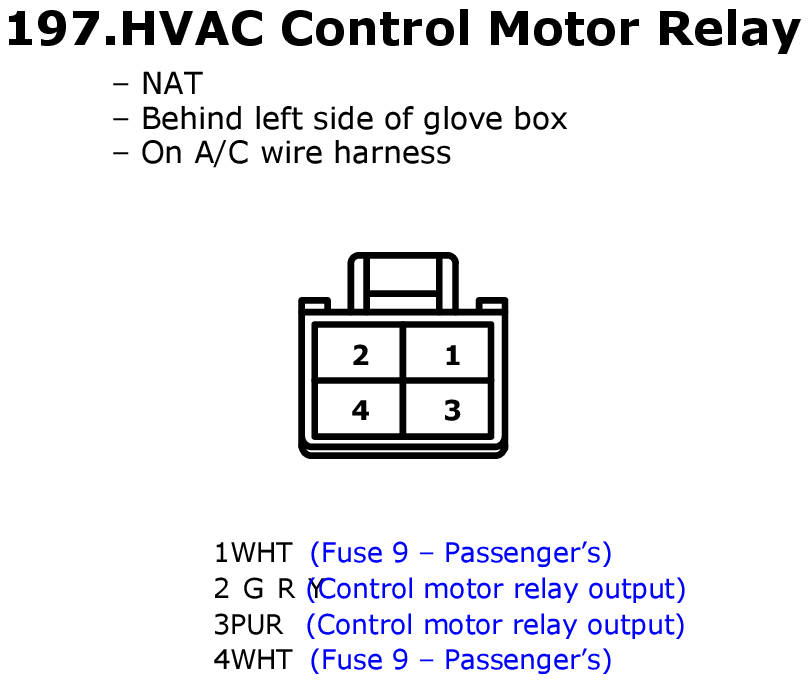

Fig 1: HVAC Control Motor Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
