Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
Ignition Switch Control Unit Connector End View
Ignition Switch Control Unit Connector End View

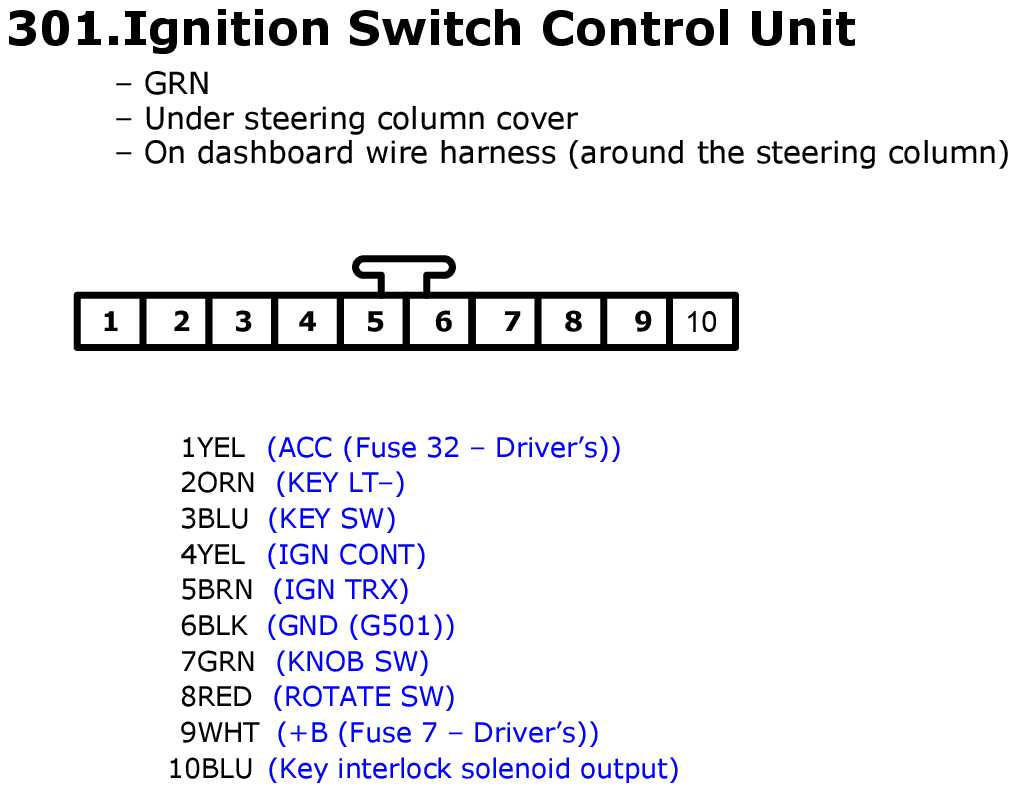

Fig 1: Ignition Switch Control Unit Connector End View
