Interface Dial Connector End View
Interface Dial Connector End View

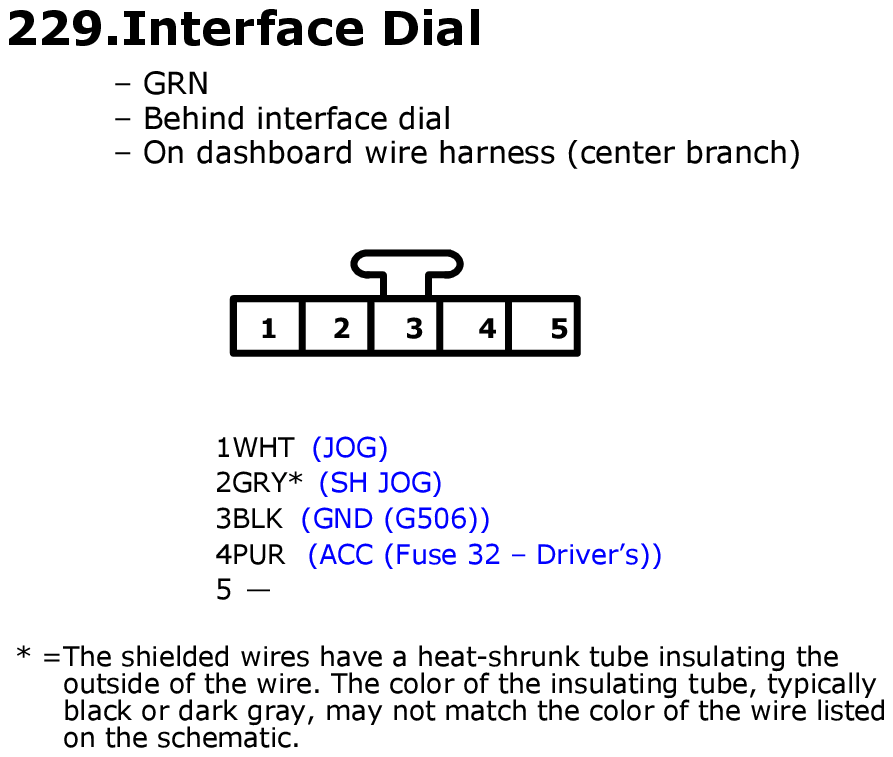

Fig 1: Interface Dial Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
